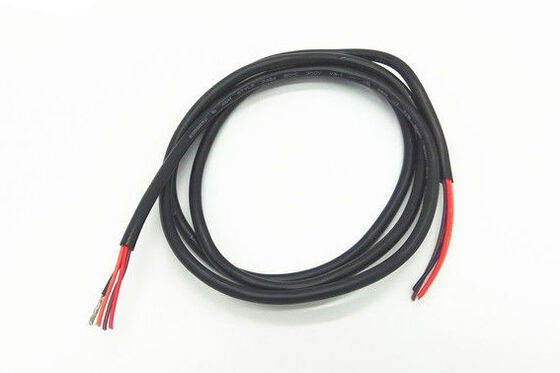

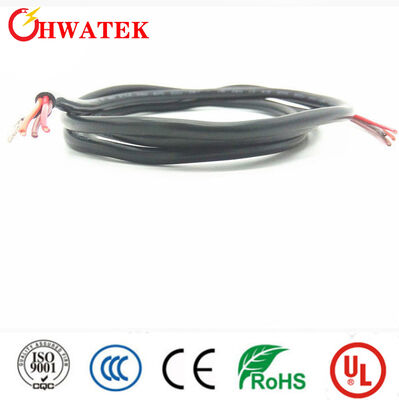

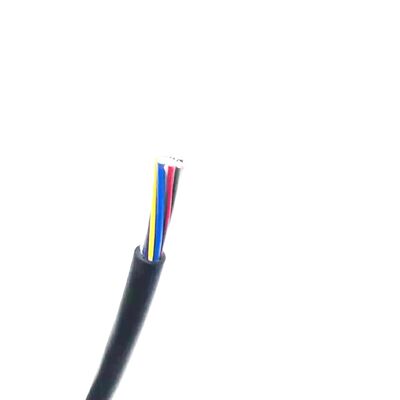

PUR Sheath Multicore Flexible Cable Electrical Wire Unscreened UL20549 300V VW-1
Construction
- Conductor: Stranded, tinned or bare copper, IEC60228 CL5
- Insulation: Special PVC, SRPVC, PP, TPEE
- Jacket: PUR
Application
These cables are designed for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist, and wet rooms (excluding open air). Suitable for use as measuring and control cables in tool machines and industrial equipment.
Standards
- International: UL758, UL1581, UL2556
- RoHS, REACH Compliant
Technical Data
| Parameter |
Specification |
| Rated Voltage |
600V |
| Rated Temperature |
-40ºC to 80ºC |
| Flame Rating |
VW-1, FT1, FT2 |
| Oil Resistance |
60ºC or 80ºC Oil |
| Voltage Withstand Test |
AC 2.5kV/1min |
| Printing |
E258652 AWM STYLE 20940 AWGXX 80ºC 600V VW-1 ---c AWM I A/B 80ºC 600V FT1 -LF-HWATEK
Note: "XX" represents AWG Number |
Properties
- Extensively oil resistant
- Conditional drag chain compatible
- Conditional suitability for torsion
- Low temperature performance
- Self-extinguishing and flame retardant
Company Profiles
Founded in 2004 with 9 million USD capital investment, our headquarters factory in Kunshan covers 14,980 square meters. In 2020, we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters. With ISO9001, ISO14001, IATF16949, and ISO13485 system certificates, all our products have passed CCC, UL, CUL, CE, CSA, and ETL safety certifications. We serve global customers across various industries through our established sales system based on the management principles of HONESTY, INNOVATION, and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
Q: What certificates do you have?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we complete orders in 2-3 weeks, and 5-6 weeks during peak season.
Q: How can you guarantee the product quality?
A: We provide pre-production samples before mass production and conduct final inspection before shipment.
