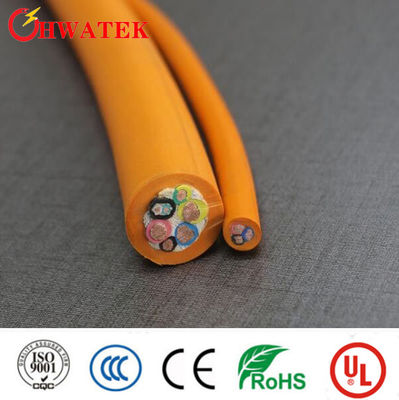

High Performance EV Charging Cable with -40~90ºC Temperature Range 63A and 32A Current Options for Electric Vehicles

Trading Properties
Minimum Order Quantity: 1千メートル
Price: US $0.5-5 / Meter
Tags

電気自動車の充満ケーブル

ev充満ワイヤー

ev charging wire
Product Summary
AC Charging Cable/Structure (EV Cable) Product Description Application range: Designed for connecting electric vehicle charging equipment to vehicles, including various EVs, charging stations, swap stations, and charging piles. Application Standards GB/T33594-2017, GB/T20234-2017 K175-2 Product ...

Product Details

ハイライト:

-40~90ºC Temperature Range EV Charging Cable

,

63A Current EV Charging Cable

,

32A Current Electric Vehicle Charging Cable
Conductor Material: タイプVI鎖の裸の銅/缶詰銅
Insulation Material: ゴム合成エラストマー/TPE
Sheath Material: TPE/TPU
Temperature Range: -40〜90ºC
Rated Voltage: 450/750V AC
Current Capacity: 10a、16a、32a、63a
Conductor Size: 1.5mm2、2.5mm2、6mm2、16mm2

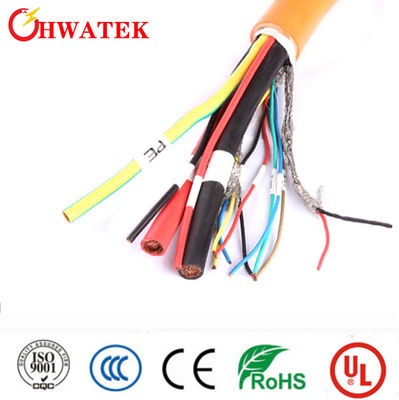

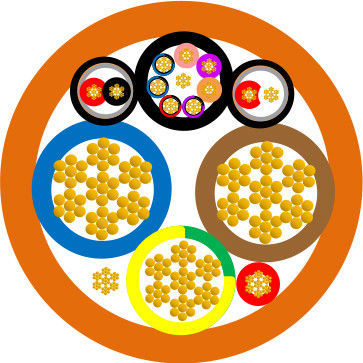

Cable Construction: 3x16mm2+2x2.5mm2+1p（2x0.75mm2）、5x16mm2+2x2.5mm2+1p（2x0.75mm2）、5x6mm2+1p（2x0.75mm2）、3x6mm2+1p（2x0.0.7
Flame Resistance: 高い
UV Resistance: はい
Oil Resistance: はい
Cold Resistance: はい
Moisture Resistance: はい
Flexibility: 高い
Production Capacity: 20km/日
Product Description
AC Charging Cable/Structure (EV Cable) Product Description Application range: Designed for connecting electric vehicle charging equipment to vehicles, including various EVs, charging stations, swap stations, and charging piles. Application Standards GB/T33594-2017, GB/T20234-2017 K175-2 Product Features Wear resistance Oil resistance UV resistance Cold resistance High flame resistance Moisture resistance High flexibility Technical Specifications Conductor: Type VI stranded
