HWATEKワイヤーおよびケーブルCO.、株式会社。
|
|
商品の詳細:
お支払配送条件:
|
| 定格電圧: | 600V | 定格温度: | 90ºC |
|---|---|---|---|
| 導体材料: | 座礁する錫メッキされた銅 | シース材料: | PVC |
| 断熱材: | PVC | ケーブルアセンブリ: | 2P×20AWG |
| 抗張力: | ≥10.3MPa | 伸長: | ≥100% |
| 老化した状態: | 121±1××168h | ジャケットの厚さ: | 0.76mm |
| ケーブルの直径: | 6.50±0.30mm | 仕様: | HT2502502 |
| ハイライト: | Copper Conductor EV Charging Cable,TPE Sheath Electric Vehicle Charging Cable,Flame Retardant EV Power Cable |
||

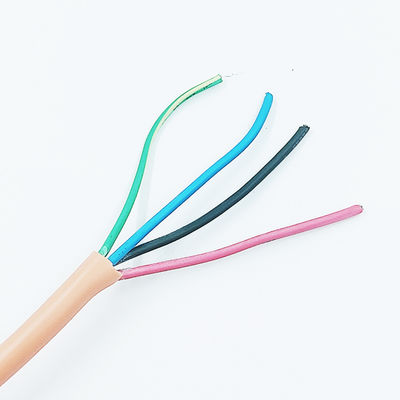

| Construction | |||||
| Conductor | Tinned copper standard | ||||
| Cross section | 2P×20AWG | ||||
| Construction | 65/0.10mm | ||||
| Strand Dia.(Ref.) | 0.93mm | ||||
| Insulation | PVC | ||||
| Nom.Thickness | 0.23mm | ||||
| Min.Thickness | 0.18mm | ||||
| Insulation Dia. | 1.40±0.08mm | ||||
| Insulation colour | 1.black&red 2.white&green | ||||
| Twisted(Ref.) | 2.80mm | ||||
| Filler | Optional | ||||
| Material | Al-mylar | ||||
| Assembly | 2P×20AWG+A | ||||
| Jacket | PVC | ||||
| Nom.Thickness | 0.76mm | ||||
| Min.Thickness | 0.61mm | ||||
| Outer Dia. | 6.50±0.30mm | ||||
| Colour | per request | ||||
| Mechanical Performance | ||||||
| Jacket | ||||||
| Material | PVC | |||||
| Tensile strength | ≥10.3MPa | |||||
| Elongation | ≥100% | |||||
| Aged condition | 121±1℃×168h | |||||
| Percent of original tensile strength | ≥70% | |||||
| Percent of original elongation | ≥65% | |||||
Insulation:PVC
Conductor : Tinned copper stranded
Construction:65/0.10mm
Jacket : per request
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL2587
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: 90℃
Voltage withstand test:AC 2.0 kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
UL758-E258652-20060111A-CertificateofCompliance(2)...
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certifications. We serve global customers across various industries through our well-established sales system based on the management principles of HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
A: We produce consumer electronics wires, hook-up wires, industrial cables, robot cables, EV charging cables, and new/green energy cables.
A: We hold UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, and ETL certifications.
A: Yes, we can arrange samples for evaluation.
A: Standard lead time is 2-3 weeks, extending to 5-6 weeks during peak seasons.
A: We conduct pre-production sampling and final inspection before shipment to ensure quality standards.
