HWATEKワイヤーおよびケーブルCO.、株式会社。
| 導体材料: | 銅で覆われない | シース材料: | TPU |
|---|---|---|---|
| 断熱材: | 熱可塑性（EF2585,85±3A） | 定格電圧: | DC 1000V |
| 定格温度: | ジャケット-40〜90ºC、断熱-40〜125ºC | 最大導体抵抗: | A：0.242Ω/km、B：0.78Ω/km、C：4.95Ω/km、D＆E：26Ω/km |
| 断熱電圧に耐える: | AC 2.5kV/5分、漏れ電流≤5MA | ケーブル電圧に耐えます: | AC 3.5kV/15分、漏れ電流≤5MA |
| 最小絶縁抵抗: | 500mΩ.km | 抗張力: | 20MPA以上 |
| 伸長: | ≥300% | 最低の曲げ半径: | 6*od |
| 耐摩耗性: | ≥2000times | 外径: | 38.00+0.6/-1.00mm |
| 生産能力: | 30KM/Day | ||
| ハイライト: | 30km/Day Production Capacity EV Charging Cable,Multicore EV Charging Cable,Copper Conductor EV Charging Cable |
||
| Product | A: 2C×80mm² | B: 1C×25mm² | C: 1C×4mm² | D: (3C×0.75mm²)(P2) | E: (7C×0.75mm²) |
|---|---|---|---|---|---|
| CONDUCTOR | |||||
| Material | Bared copper stranded | ||||
| Size | 2580/0.20±0.008mm | 798/0.20±0.008mm | 224/0.15±0.008mm | 40/0.15±0.008mm+10/0.19mmTinsel+200DKevlar | 40/0.15±0.008mm+10/0.19mmTinsel+200D Kevlar |
| O.D.(Ref.) | 12.40±0.25mm | 7.00±0.20mm | 2.70±0.15mm | 1.40±0.10mm | 1.40±0.10mm |
| INSULATION | |||||
| Material | Thermoplastic(EF2585,85±3A) | ||||
| Min. average thickness | 1.60mm | 1.20mm | 1.00mm | 0.50mm | 0.50mm |
| Min.thickness at any point | 1.34mm | 0.98mm | 0.80mm | 0.35mm | 0.35mm |
| O.D. | 15.60±0.40mm | 9.60±0.30mm | 4.70±0.20mm | 2.50±0.10mm | 2.50±0.10mm |
| Electrical Characteristics | Physical Properties |
|---|---|
| Rated voltage: DC 1000V | Tensile strength: ≥20MPa |
| Rated temperature: Jacket -40~90ºC Insulation -40~125ºC |
High temperature pressure test: ≤50% |
| Max. conductor resistance(20ºC): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km |
Heat shock test: No crack |
| Insulation Voltage withstand(Core A&B,10m): AC 2.5kV/5min,leakage current ≤5mA |
Compatibility test: GB/T 33594 |
| Completed cable Voltage withstand(Core A to A&B,10m): AC 3.5kV/15min,leakage current ≤5mA |
Crush resistance test: GB/T 33594 |
| Min. Insulation resistance(20ºC, Core A to A&B): 500MΩ.km | Curved around the test: GB/T 33594 |

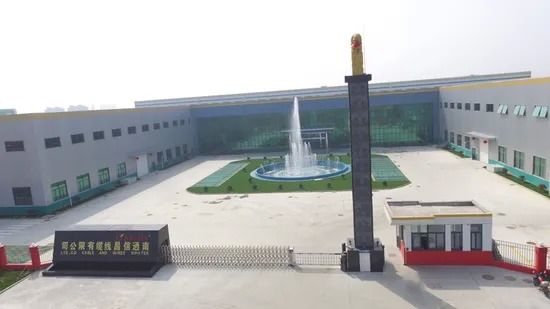

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
A: Yes, we are willing to arrange samples for you.
A: Normally we can finish orders in 2-3 weeks, and 5-6 weeks in peak season.
A: We always provide a pre-production sample before mass production and conduct final inspection before shipment.
