HWATEKワイヤーおよびケーブルCO.、株式会社。
| 導体材料: | 銅 | シース材料: | PVC |
|---|---|---|---|
| 断熱材: | TPE | 材料の形状: | 丸いワイヤー |
| 最大導体抵抗: | 8.9-11.4Ω/km | 公称厚: | 0.76-4.83 mm |
| コア直径: | 2.8-8.5 mm | 外径: | 0-60.0 mm |
| 定格温度: | 80ºC-105ºC | 定格電圧: | 300Vから600V |
| 導体構造: | 立ち往生 | シールド: | 錫メッキされた銅のブレード |
| 低温抵抗: | -40℃ | 1ロールあたりの数量: | 305m、610m |
| AWG範囲: | 6-18 | ||
| ハイライト: | High Voltage EV Charging Cable,300V/600V Rated Voltage EV Charging Cable,80ºC-105ºC Temperature Range EV Charging Cable |
||
| Type | Conductor | Insulation | Jacket | Max. Cond. Resistance(20ºC)Ω/km |
|---|---|---|---|---|
| EVJE EVJT(300V) | 18 AWG 2-6C 41/0.16 0.76 |
2.8 0-8.89 0.76 |
0-12.0 8.9-11.4 1.14 11.18-15.0 |
|
| 16 AWG 2-6C 26/0.254, 65/0.16 0.76 |
3.1 11.5-14.0 1.52 |
14.54-20.0 14.1-22.9 2.03 18.16-30.0 |
||
| 14 AWG 2-6C 41/0.254 0.76 |
3.4 23.0-31.7 2.41 |
27.82-40.0 31.8-38.1 2.79 37.38-45.0 |
||
| 12 AWG 2-6C 65/0.254 0.76 |
3.9 38.2-50.8 3.17 |
44.54-60.0 | ||
| EVE EVT(600V) | 18 AWG 2C or more 41/0.16 0.76 |
2.8 0-12.7 2.03 |
0-20.0 |

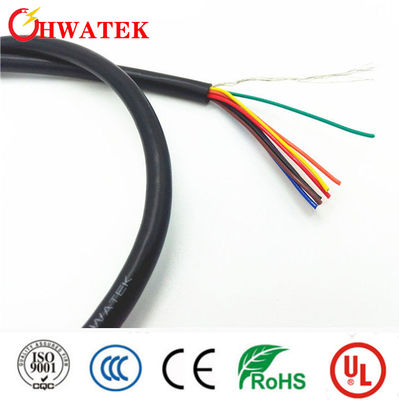

Connection wire between EV charging equipment and EV, including various EVs, charging stations, and charging piles.
Application standard: UL62

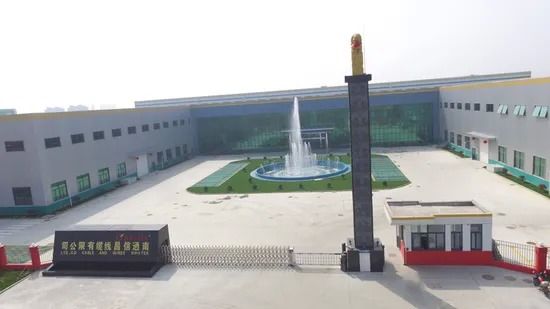

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14,980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment covering 34,000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all products have passed CCC, UL, CUL, CE, CSA, ETL safety certifications. We serve global customers through our sales system based on the principles of HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
