HWATEKワイヤーおよびケーブルCO.、株式会社。
| シース材料: | TPE | 断熱材: | TPU |
|---|---|---|---|
| 材料の形状: | 丸いワイヤー | ケーブル仕様: | 2c×80mm2+1c×25mm2+2c×4mm2+（3c×0.75mm2）（p2）+（7c×0.75mm2） |
| 導体材料: | 銅で覆われない | 定格電圧: | DC 1000V |
| 定格温度: | ジャケット-40〜90ºC、断熱-40〜125ºC | 最大導体抵抗: | A：0.242Ω/km B：0.78Ω/km C：4.95Ω/km D＆E：26Ω/km |
| 断熱電圧に耐える: | AC 2.5kV/5分、漏れ電流≤5MA | 最小絶縁抵抗: | 500mΩ.km |
| 抗張力: | 20MPA以上 | 伸長: | ≥300% |
| 最低の曲げ半径: | 6*od | 耐摩耗性: | ≥2000times |
| 生産能力: | 20km/日 | ||
| ハイライト: | 1000V High Voltage EV Charging Cable,ISO Certified EV Charging Cable,RoHS Compliant EV Charging Cable |
||

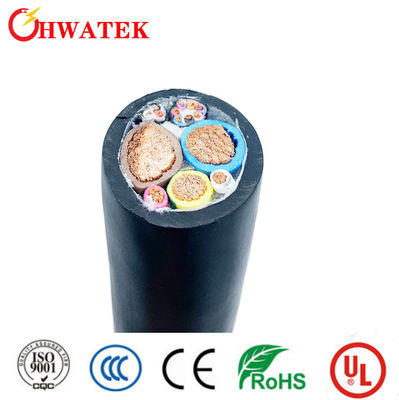

| SPECIFICATION | CABLE NAME | EV Cable |
|---|---|---|
| CABLE SPEC | 2C×80mm2+1C×25mm2+2C×4mm2+(3C×0.75mm2)(P2)+(7C×0.75mm2) RoHS Compliant |
|
| Item |

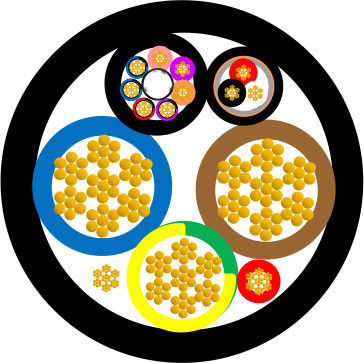

A: 2C×80mm2 B: 1C×25mm2 C: 1C×4mm2 D: (3C×0.75mm2)(P2) E: (7C×0.75mm2) |
|
| Component | Material | Specifications |
|---|---|---|
| CONDUCTOR | Bared copper stranded |
Size: 2580/0.20 ±0.008mm | 798/0.20 ±0.008mm | 224/0.15±0.008mm +10/1#Tinsel+1000D Kevlar | 40/0.15±0.008mm+ 10/0.19mmTinsel+200DKevlar | 40/0.15±0.008mm+ 10/0.19mmTinsel+200D Kevlar |
| O.D.(Ref.) | 12.40±0.25mm | 7.00±0.20mm | 2.70±0.15mm | 1.40±0.10mm | 1.40±0.10mm | |
| INSULATION | Thermoplastic(EF2585,85±3A) |
Min. average thickness: 1.60mm | 1.20mm | 1.00mm | 0.50mm | 0.50mm Min.thickness at any point: 1.34mm | 0.98mm | 0.80mm | 0.35mm | 0.35mm O.D.: 15.60±0.40mm | 9.60±0.30mm | 4.70±0.20mm | 2.50±0.10mm | 2.50±0.10mm |
| Electrical Characteristics | Physical Properties |
|---|---|
|
Rated voltage: DC 1000V Rated temperature: Jacket -40~90ºC Insulation -40~125ºC Max. conductor resistance(20ºC): A:0.242Ω/km B:0.78Ω/km C:4.95Ω/km D&E:26Ω/km Insulation Voltage withstand(Core A &B,10m): AC 2.5kV/5min,leakage current ≤5mA Completed cable Voltage withstand(Core A to A &B,10m): AC 3.5kV/15min,leakage current ≤5mA Min. Insulation resistance(20ºC, Core A to A &B):500MΩ.km |
Tensile strength: ≥20MPa Elongation: ≥300% Aged condition: 110±1ºC×168h Percent of original tensile strength: ≤±30% Percent of original elongation: ≤±30% Flame test: GB/T 18380.12-2008 Min. Bend radius: 6*OD Abrasion resistance: ≥2000times |

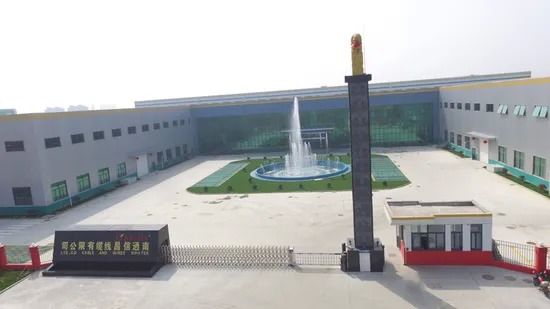

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
コンタクトパーソン: Jimmy Wang
電話番号: 17715039722
