UL2464 PVC Insulated Braid Shielded Electrical Industrial Electric Power Wire Cable
Product Specifications
| Attribute |
Value |
| Model NO. |
UL |
| Material Shape |
Round Wire |
| Color |
Optional |
| Qty/Roll |
305m,610m or as Request |
| Lead Time |
2-8W |
| Shipping Mode |
Sea, Air, Rail, Truck |
| Transport Package |
Rolled in Reels, Packed in Pallets |
| Specification |
24-28AWG |
| Trademark |
Hwatek |
| Origin |
China |
| HS Code |
8544492100 |
| Production Capacity |
20km/Day |
Product Description
Products are widely used in industrial control systems, household appliances, office systems, and consumer electronics.
Key Features
- Application: Internal wiring or external interconnection of electronic equipment
- Application standard: UL758 & UL1581 & CSA C22.2 No.210
- Excellent insulation performance with stable chemical properties
- Passes UL VW-1 and CSA FT1 vertical flame test
- Heat resistant, anti-acid, and environmentally friendly
Construction Details
- Tinned or bare copper, stranded or single conductor (2-50 conductors) 36-16AWG
- PP insulation
- Max core wire size: 20AWG, available in flat or round
- Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
- PU jacket (Halogen free material available) cable is either straight or spiral
Technical Parameters
- Rated temperature: 60ºC
- Rated Voltage: 300V
Product Specifications Table
| Product Number |
Conductor |
Insulation |
Shield |
Jacket |
Max. Cond. Resistance (200C) Ω/km |
| HT21007**101 |
3C
28 AWG
7/0.127
0.38mm |
0.26mm
0.80mm |
0.025mm
0.10mm
0.80mm |
3.80mm |
223 |
| HT21007**102 |
3C
26 AWG
7/0.16
0.48mm |
0.26mm
0.90mm |
0.025mm
0.10mm
0.80mm |
4.04mm |
140 |
| HT21007**103 |
3C
24 AWG
11/0.16
0.60mm |
0.26mm
1.12mm |
0.025mm
0.10mm
0.80mm |
4.51mm |
87.6 |
| HT21007**104 |
3C
22 AWG
17/0.16
0.76mm |
0.26mm
1.30mm |
0.025mm
0.10mm
0.80mm |
4.90mm |
55.4 |
| HT21007**105 |
6C
28 AWG
7/0.127
0.38mm |
0.26mm
0.80mm |
0.025mm
0.12mm
0.80mm |
4.70mm |
223 |
| HT21007**106 |
6C
26 AWG
7/0.16
0.48mm |
0.26mm
0.90mm |
0.025mm
0.12mm
1.00mm |
5.30mm |
140 |
| HT21007**107 |
6C
24 AWG
11/0.16
0.60mm |
0.26mm
1.12mm |
0.025mm
0.12mm
1.00mm |
6.00mm |
87.6 |
Remark: Optional core wire number 2C-50C, and shielding way

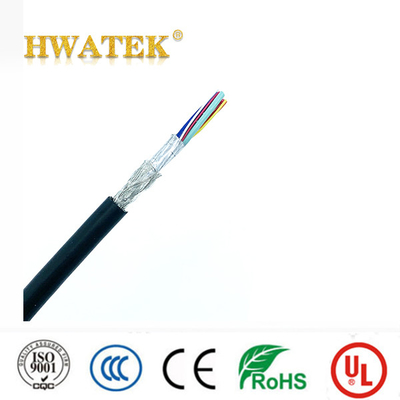

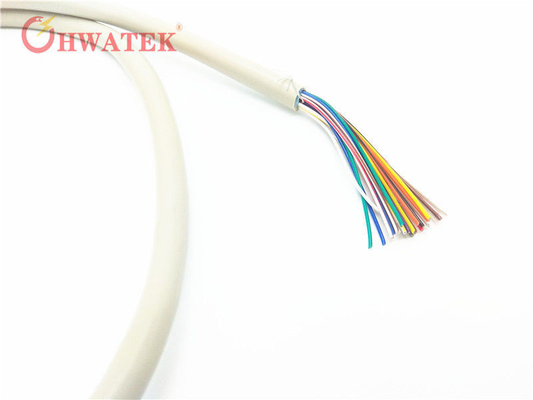

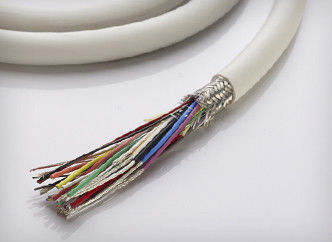

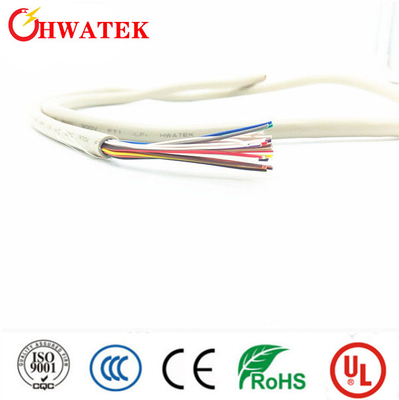

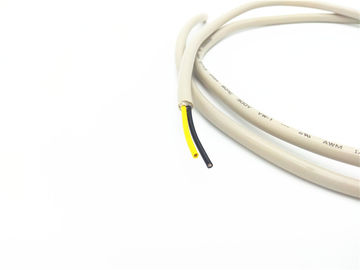

Product Images
Company Profile
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters. In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters. With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certifications
Production Process
Shipping
Frequently Asked Questions
Q: What can you supply?
A: We produce consumer electronics wires, hook up wires, industrial cables, robot cables, EV charging cables, new/green energy cables.
Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
Q: Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
Q: What's your lead time?
A: Normally we can finish your orders in 2-3 weeks, and 5-6 weeks in peak season.
Q: How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final inspection before shipment.
